If you are in doubt about wheel spacers…Dont be!

You have 3 types of wheel spacers to choose from for the Porsche Panamera without rubbing fenders. 5mm, 7mm and 15mm. I think 15mm spacers look very good on most wheel and make the car look a little different.

Whatever brand you choose make sure you get HUB CENTRIC (they install on the center of the wheel snugly) wheel spacers or you will have wheel balance problems.

Most spacers will come with lug nuts. Here is a little guide on the lug nuts:

911b



5mm spacers – dont require new bolts

7mm spacers – require 40mm shank bolts

15mm spacers – require 45mm shank bolts

OEM bolt SPECS:

  • Overall Length: 59.2mm
  • Hex Size: 19mm
  • Fits: M14 x 1.5mm metric wheel studs
  • Shank Length: 35.1mm
  • Seat/Style: Radius Seat Bolt
  • Lug nut torque: 118 ft lbs (’10-’11 models)
  • Lug nut torque: 133 ft lbs (’12-’14 models)
Some of you will require new WHEEL LOCKS.
lugs  buy-now


Most Popular Setups:

for OEM 20″ Sport Spider Wheels (Photo)
(wider than Turbo IIs by 0.5 inch (13mm))
FRONT REAR
15 mm 5 mm
OR just 10 mm all around looks good





for 20″ Turbo II Wheels (Photo)
FRONT REAR
5-7 mm 15 mm
(narrower width and higher offset at the rear)
OR just 15mm all around looks good. No rubs, no problem.
* Porsche only recommends up to 5mm on the rear, nothing on the front





for 19″ Turbo Wheels (Photo)
FRONT REAR
7 mm 15 mm





Here are some pictures with spacers on the Panameras

sp6



Turbo II wheels

FRONT – 15 mm spacers

sp5



Turbo II wheels

REAR – 15 mm spacers

15mmfront



Turbo II wheels

FRONT – 15 mm spacers

15mmRear



Turbo II wheels

REAR – 15 mm spacers

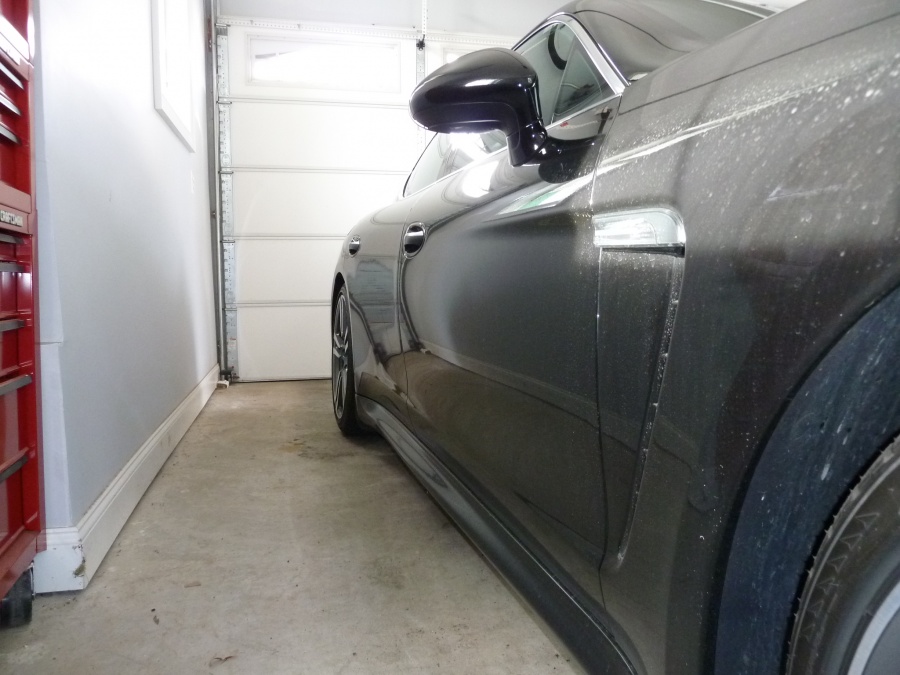

5mmRear



Turbo II wheels

REAR – 5 mm spacers

7mm-Rand5mm-F_2



Turbo II wheels

FRONT – 5mm spacers

7mm-Rand5mm-F_1



Turbo II wheels

REAR – 7 mm spacers

7mm-Rand5mm-F_3



Turbo II wheels

FRONT – 5mm spacers

REAR – 7 mm spacers

10mmsport1



Sport Spider Wheels

FRONT – 10mm spacers

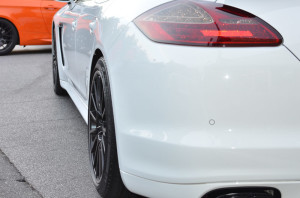

10mmsport2



Sport Spider Wheels

REAR – 10 mm spacers
